Remote Time Lapse Setup Ready for Snow Season!

I shoot a lot of time lapses. I use several different cameras, depending on the situation, but the best is my trusty old Nikon D90, with an Aputure AP-TR3N digital timer (intervalometer) (because the D90, stupidly, doesn't have an internal timer).  This setup, along with a Nikon external power supply and a 16GB memory card, works great, and is responsible for many of my time lapses, which you can see here

For shooting snowstorms, I built a weatherproof enclosure out of Pelican case:

(More pictures of the enclosure here) and figured out a way to keep the snow off the lens using a waterproof fan:

There are, however, a couple problems with the weatherproof setup. First, once the camera's in the case, it's pretty hard to compose the shot, or even check the focus. Secondly, the only way to check on the camera once I start the time lapse is to dig to the bottom of a snow drift and open the case, which messes things up. Not checking means that the camera could run completely out of memory and I'd have no idea.

So, when I saw that the Eye-Fi card--which adds a wi-fi connection to a memory card--had an "endless memory" feature, I bought one. The idea of the endless memory feature is that as files are wirelessly  transferred off the camera to a remote computer, they are automatically  deleted from the card to keep the maximum memory utilization at some  level you preset using the Eye-Fi setup program. In testing, I had a bit of difficulty getting a wireless connection to the card with the camera on the roof, and this was made more difficult by the fact that there's apparently no way to monitor the signal strength until photos stop coming in to the Eye-Fi software running on the computer. But for the test, I moved my wireless access point to the roof, and got a connection that seemed solid.  I tested the setup shooting a time lapse of the Tribute in Light (photos from a previous year here), but the time lapse stopped in the middle of the night--when the 8GB Eye-Fi card filled up.

Suspecting a flaky wireless connection, or a software failure, I did a bunch more testing over several weeks, but I didn't figure out what went wrong until I saw a great Burning Man time lapse by Matthew Goodman.  In his writeup of his setup, he said, "Eye-Fi cards come with an extremely annoying,  totally undocumented feature. Namely that they require a hardware  reboot (or several) to delete photos."  I searched all the Eye-Fi documentation and couldn't confirm this functionality, so, I got in touch with Mr. Goodman and he pointed me to this Eye-Fi tech support thread which confirmed the problem. For the endless memory feature to work, the camera has to be completely powered on and off several times. This "feature" makes the Eye-Fi pretty much useless for time lapses, and I'm in the process of getting my money back for the card.

Next up, I looked into ways to hardwire the camera to the computer.  The camera has a USB connector, but USB is limited to about 10 feet. You can buy passive USB extenders, but those always make me nervous, so with a bit of googling, I found the Zonet USB Over Ethernet Hub:

Update August 2013: The Zonet isn't made any more.  I found this on B&B Electronics. I haven't used this device, but I've had good luck with B&B stuff in the past.

With the Zonet, any USB device (the D90, in this case) can be presented as an IP server accessible anywhere over your network.  Zonet supplies software that lets you find and select a remote USB device, and presents it as a local USB device to your computer:

In my initial tests, connected the Zonet to the camera and through the network used Adobe Lightroom's "tethered capture mode", which continuously transfers pictures off the camera and into Lightroom.  Using my intervalomter, the whole thing worked great--for a while.  After 100 frames or so, inexplicably the D90 would stop shooting.  I tried going direct USB without the Zonet, and got the same problem again, which I documented in a crappy video you can see here)  I sent the video to Nikon technical support, and they said couldn't respond because they "don't support non-Nikon products".  I thought this was pretty ridiculous, since it was the camera itself that was freezing, and Lightroom is hardly a fringe shareware software program.

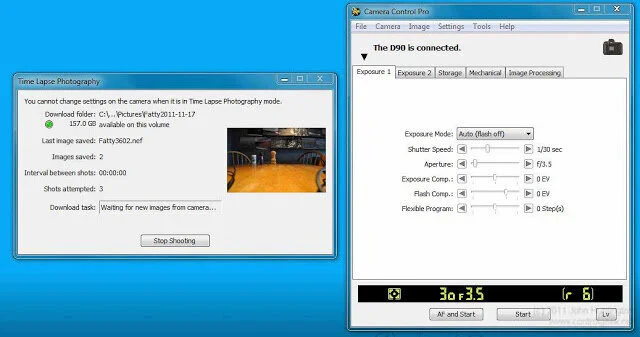

In any case, Nikon recommended that I use their Camera Control Pro 2 software, which I had fooled around with years ago when I first got the camera. Camera Control Pro is incredibly overpriced at $180 list, and has a very kludgy user interface:

But, I have to say that I've now done a bunch of testing with it, does work well and seems very reliable.  Here's a test I shot with the whole setup: D90 to the Zonet to my Ethernet network to my laptop running Camera Control Pro 2:

And here's all the parts together, with only AC power and a Cat 5 cable (or, I assume a wireless connection) needed to run to the remote camera:

So far, I'm pretty happy with this setup, because it offers a number of benefits:

  • Remote control of the camera.
  • Continuous download of images (which can be automatically opened in Lightroom using the "Auto Import" feature) and backup onto the memory card if the Zonet fails.
  • Remote viewing from the camera so that I can reframe, compose and check focus without opening my weatherproof box.
  • Remote exposure control.
  • Ability to make partial time lapses of a long sequence of frames without disturbing the camera (all the frames reside on the computer all the time).
  • Reliable connection via Ethernet and TCP/IP.
  • No need for an external (battery powered) intervalometer.
  • Peace of mind--I can always tell if the unit is working.

We'll see how this holds up for the next snow storm, but so far so good!
